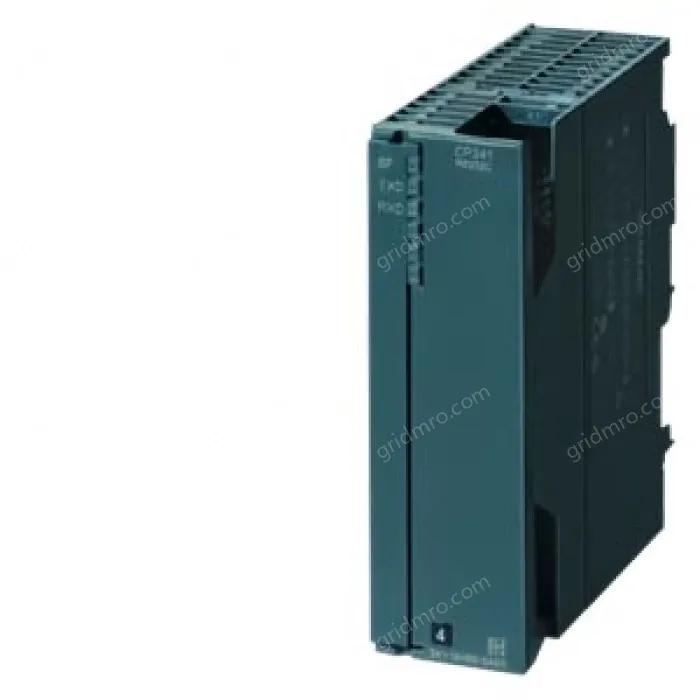

GridMRO.com-Leading global industrial mall.| CP 341

Product Details

Model: 6ES7341-1CH02-0AE0
SKU: 10000004019401
Brand: SIEMENS
Size: 12.80000000 CM, 15.20000000 CM, 5.00000000 CM

Specifications

DI Points0
DO Points0
AI Points0
AO Points0
Input Voltage24VDC
Output Voltage
Input Response Time
Output TypeSerial Communication
DI Channels0
DO Channels0
AI Channels0
AO Channels0
Input Signal Range
Output Signal Range
Power Supply TypeDC

Description Reviews

Artikelnummer

6ES7341-1CH02-0AE0

		SIMATIC S7-300, CP341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
Supply voltage
24 V DC		Yes
Input current
from backplane bus 5 V DC, max.		70 mA
from supply voltage L+, max.		100 mA
Power losses
Power loss, typ.		1.6 W
Power loss, max.		2.4 W
Interfaces
Number of interfaces		1; Isolated
Interface physics, RS 422/RS 485 (X.27)		Yes
Transmission rate, max.		115.2 kbit/s
Transmission rate, min.		0.3 kbit/s
Point-to-point
● Cable length, max.		1 200 m
● supported printers		Serial printers
● PtP		15-pin sub D socket
Integrated protocol driver
— 3964 (R)		Yes; not with RS 485
— ASCII		Yes
— RK512		Yes; not with RS 485
Telegram length, max.
— 3964 (R)		4 096 byte
— ASCII		4 096 byte
— RK 512		4 096 byte
Transmission speed, RS 422/485
— with 3964 (R) protocol, max.		115.2 kbit/s
— with ASCII protocol, max.		115.2 kbit/s
— with printer driver, max.,		115.2 kbit/s
— with RK 512 protocol, max.		115.2 kbit/s
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		60 °C
Software
Block
● FB length in RAM, max.		6 100 byte; Data communication, sending and receiving
Connection method
Power supply		3 screw-type terminals: L+, M, GND
Dimensions
Width		40 mm
Height		125 mm
Depth		120 mm
Weights
Weight, approx.		300 g
last modified:		25.09.2014
